stone polishing machine,polishing machine,stone polisher,slab polishing machine

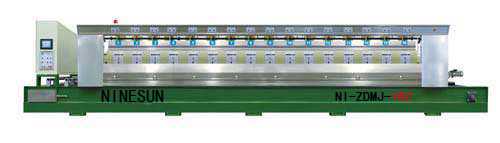

This machine is for polishing granite and marble slabs. It pre-polish,rough-polish,finish-polish and burnish continuously.

The polish spindle is controlled for counterpressure by a coaxial cylinder according to the stone character. The operator could choose the required speed of crossbeam and belt by an inverter.

PC color touch screen controlled and programmed. Slab profile sensing through sensors.Minimal raise of polish heads at slab exit and lowering at slab entry without variation of the programmed working pressure. Real time visualization of tools state. The control system inspects and optimizes the movement of polish head, crossbeam and belt to expert polishing. This machine can be controlled by telephone network in long range. Fault diagnosis system and production data statistics makes it more humanized.

NI-ZDMJ-16C

		ZDMJ-6C	ZDMJ-14C
No.of heads	n°	6	14
Useful working width	mm	600-2000	600-2000
Useful working thickness	mm	15-50	15-50
Belt advancement speed	mm/min	0-2500	0-2500
spindle motor power	KW	11	11
Total power	KW	71.6	162.6
Water consunmption	m³/h	10	22
Overall dimensions(L×W×H)	mm	6540×3470×2560	10810×3560×2560

		ZDMJ-16C	ZDMJ-18C
No.of heads	n°	16	18
Useful working width	mm	600-2000	600-2000
Useful working thickness	mm	15-50	15-50
Belt advancement speed	mm/min	0-2500	0-2500
spindle motor power	KW	11	11
Total power	KW	184.6	206.6
Water consunmption	m³/h	25	28
Overall dimensions(L×W×H)	mm	11900×3560×2560	12990×3560×2560
