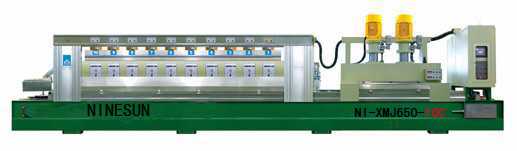

tile polishing machine

This is a polishing for marble tiles.It has two calibrating heads and ten polishing heads.

The No.of griding and polishing head can make to order by customer.


Useful working width mm 650
Useful working thickness mm 15-50
Belt advancement speed mm/min 2500
Power of grinding head KW 15 or 22
Power of polishing head rpm 7.5
Total power KW 111.5
Water consumption m3/h 15
Overall dimensions(L×W×H) mm 10184×2445×2859

tile polishing machine
Calibrating head
Conveyor belt,tile polishing machine
Conveyor belt
Polishing machine during assembly,tile polishing machine
Polishing machine during assembly
